Installing Options

Install options in the positions shown in the illustration.

Exterior


  1. Paper Feed Unit TK1030 (Tray 2 or Tray 3)

    You can load up to 500 sheets (60-130 g/m2, 16-34 lb.) of plain paper into the tray.

    See Attaching Paper Feed Unit TK1030.

  2. Envelope Feeder Type 400

    You can load up to 60 envelopes (72-90 g/m2, 19-24 lb.) into the tray.

    See Attaching Envelope Feeder Type 400.

  3. AD1000 (duplex unit)

    You can print on both sides of paper.

    Install the duplex unit by removing the rear cover of the printer.

    See Attaching AD1000 (Duplex Unit).

Note

  • Up to two Paper Feed Units TK1030 can be attached.

  • The upper optional paper feed unit is displayed with "Tray 2", and the lower unit is displayed with "Tray 3" on the display.

  • The Envelope Feeder is a tray that slides into the optional paper feed unit. Without the optional paper feed unit, the Envelope Feeder cannot be used.

  • Your printer can accommodate two optional paper feed units. The envelope feeder unit can be used in "Tray 2" and "Tray 3". The main unit's feed tray (Tray 1) cannot be used for this purpose.

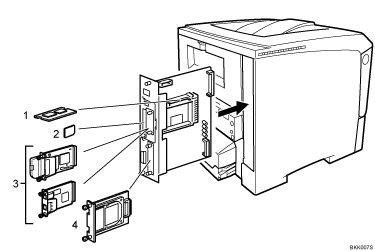

Interior


  1. Memory Unit Type C 128MB/ 256MB (SDRAM module)

    Install 128 MB or 256 MB SDRAM module into the controller board slot.

    See Attaching Memory Unit Type C 128MB/256MB (SDRAM Module).

  2. Optional cards

    See Attaching Optional Cards.

  3. Optional boards

    See Attaching Wireless LAN Interface Board.

    See Attaching Gigabit Ethernet Board Type A.

  4. Hard Disk Drive Type 2650

    See Attaching Hard Disk Drive Type 2650.

Note

  • You cannot install following options at the same time:

    • IEEE 802.11b Interface Unit Type N

    • Gigabit Ethernet Board Type A
