Spread Duplex
You can copy a two-page spread original onto both sides of the paper.
You cannot use the ADF with this function.
There are two types of Spread Duplex.

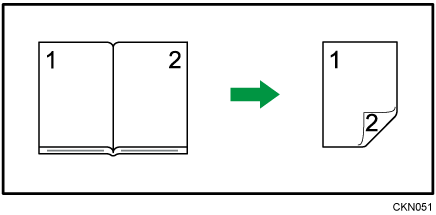

Spread → 2 Sided
Copies a two-page spread original onto one sheet with one page per side.

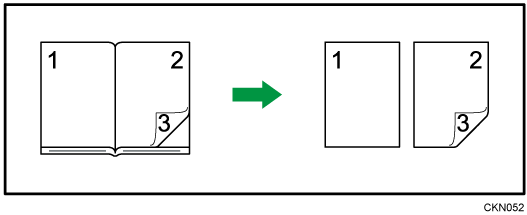

Spread → 2 Sided (Spread)
Copies each two-page spread original as it is onto both sides of a sheet.
The following table shows the paper sizes for Spread → 2 Sided when the reproduction ratio is 100%:
Original |
Paper |
|---|---|
|
A3 |
A4 |
|
B4 JIS |
B5 JIS |
|
A4 |
A5 |
|
11 × 17 |
81/2 × 11 |
(2-sided)
Originals whose sizes and orientations are different cannot be copied.
You can change the orientation for copy. For details, see Specifying the Original and Copy Orientation.
Press [Original Settng].
Press [Original Orientation].
Select the readable orientation (
), and then press [OK].

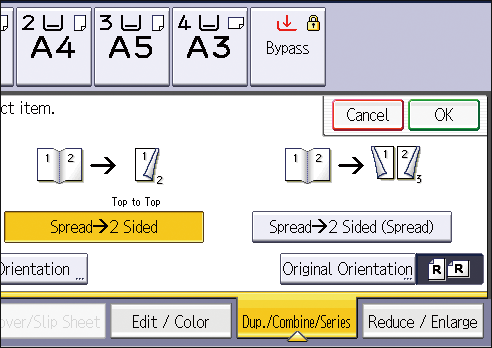

Press [Dup./Combine/Series].
Press [Spread Dplx.].
Select [Spread → 2 Sided].
Press [OK].
Select the paper tray.
Press [Original Settng].
Press [Original Orientation].
Select the readable orientation (
), and then press [OK].Press [Dup./Combine/Series].
Press [Spread Dplx.].
Select [Spread → 2 Sided (Spread)].
Press [OK].
Select the paper tray.
