If the Finisher SR5000 is attached

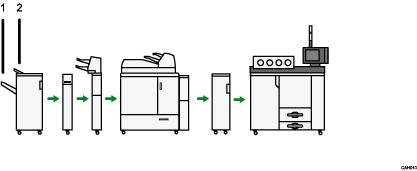

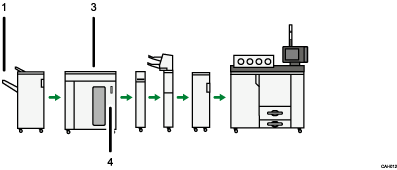

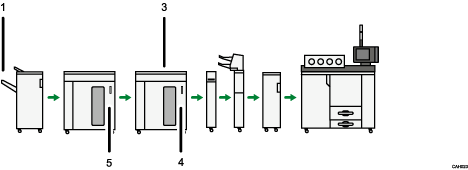

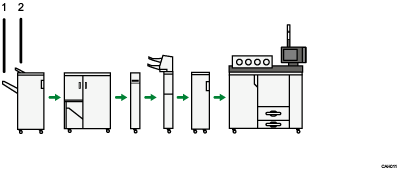

This illustration shows the output trays that can be selected when using the Finisher SR5000.

Illustration of Finisher SR5000 numbered callout illustration

Illustration of Finisher SR5000 numbered callout illustration

Illustration of Finisher SR5000 numbered callout illustration

Illustration of Finisher SR5000 numbered callout illustration

  1. Finisher Shift Tray

  2. Finisher Upper Tray

  3. Stacker Upper Tray

  4. Stacker Tray

  5. Second Stacker Tray

Default tray if the stacker is not installed: [Finisher Shift Tray]

Default tray if the stacker is installed: [Stacker Upper Tray]

Note

  • [Second Stacker Tray] appears only if [Output Tray] is set to [According to Function Setting] in [Output Tray Setting]. If you set [Output Tray] to [Auto Change], you can specify [Stacker Tray], in which case, the stacker tray or second stacker tray will be automatically selected.
