Partial Copy

Use this function to copy only a specified length of the original.

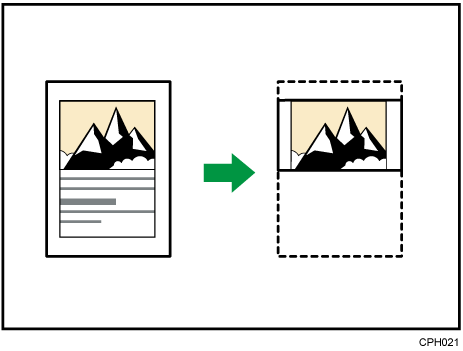

Illustration of Partial Copy

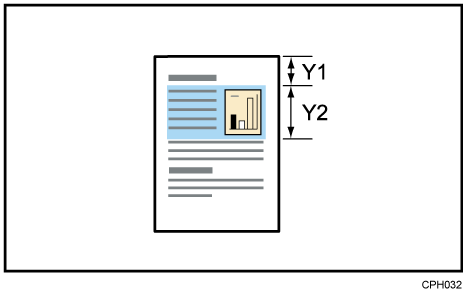

To specify the length you want to copy, you have to define the value of Y1 and Y2 on the original. Measure the length you want to specify before entering the settings.

Illustration of Partial Copy

  1. Press [Edit / Color].
    Operation panel screen illustration

  2. Press [Edit Image].

  3. Press [Partial Copy].

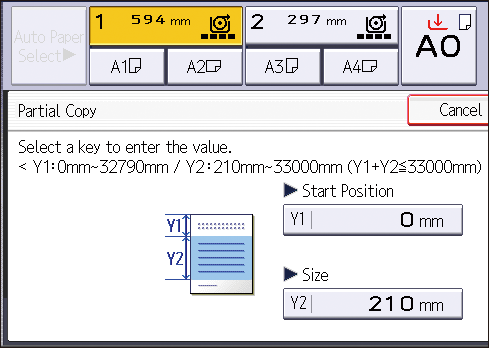

  4. Press [Y1], and then enter the scan start position (the length from the leading edge of the original) with the number keys.
    Operation panel screen illustration

  5. Press [Sharp].

  6. Press [Y2], and then enter the copy size with the number keys.

  7. Press [Sharp].

  8. Press [OK] twice.

Note

  • The copy size (Y2) should be at least 210 mm (8.3 inches). For Y2, specify the actual length that you want to copy.

  • The maximum value of Y1plusY2 is 33,000 mm (1299.2 inches).

  • If Y1plusY2 is greater than 33,000 mm (1299.2 inches), the machine shortens Y2 to make Y1plusY2 less than the maximum.

  • You can change the settings for Partial Copy under Partial Copy Size. For details, see User Guide of your device.
