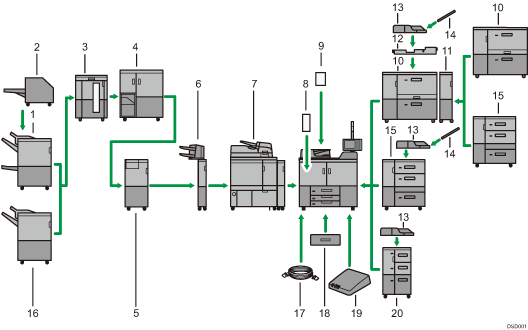

Booklet Finisher SR5060
Sorts, stacks, and staples multiple sheets of paper. The saddle stitch function can staple multiple sheets of paper in the center and fold them into booklets. Consists of the following paper trays:
Finisher upper tray
Finisher shift tray
Finisher booklet tray
Copies or prints can be punched if the optional punch unit is installed on the finisher.
Trimmer
Cuts the fore edge of the book block after the book block is saddle stitched.
High capacity stacker
Consists of the following paper trays:
Stacker upper tray
Stacker tray
The stacker upper tray can hold up to 250 sheets of paper, and stacker tray can hold up to 5,000 sheets of paper. You can connect up to two high capacity stackers.
Ring binder
Binds sheets of paper with a ring comb.
Multi-folding unit
Applies the following folds: Half Fold, Letter Fold-out, Letter Fold-in, Double Parallel Fold, Gate Fold, and Z-fold.
Interposer
Inserts cover or slip sheets into copied or printed paper.
Perfect binder
Applies adhesive to the spine of gathered pages to bind them in a booklet.
Decurl unit
Flattens curls from sheets to prevent paper jams.
ADF double-feed detection kit
Detects a double feeding of the original when it is placed in the ADF.
Two-tray wide LCT
Holds up to 4,800 sheets of paper. You can load paper whose sizes are up to SRA3 or 13 × 191/5. You can connect up to two two-tray wide LCTs.
Bridge unit of two-tray wide LCT
Connects a two-tray wide LCT to an additional wide LCT.
Multi bypass attachment kit
Attaches the multi bypass tray (Tray 7) to the two-tray wide LCT.
Multi bypass tray (Tray 7)
Holds up to 500 sheets of paper.
Banner sheet tray of multi bypass tray (Tray 7)
Allows you to load large-sized paper in the multi bypass tray (Tray 7).
Three-tray wide LCT
Holds up to 4,000 sheets of paper. You can load paper sizes up to SRA3 or 13 × 191/5.
Finisher SR5050
Sorts, stacks, and staples multiple sheets of paper. Consists of the following paper trays:
Finisher upper tray
Finisher shift tray
Copies or prints can be punched if the optional punch unit is installed on the finisher.
Copy connector
Allows you to use the connect copy function.
A3/11 × 17 tray unit
You can load A3, 11 × 17 or larger size paper in Tray 1 using this unit. If you install the A3/11 × 17 tray unit on your machine, you cannot use it as a tandem tray.
An indicator on the front left side of the tray lights while paper is feeding.
Interface box
Allows you to connect extended options to the machine.
LCT
Holds up to 4,550 sheets of paper.
You can install the high capacity stacker only if the decurl unit is installed.
You cannot install multiple finishers simultaneously.
If you have connected two high capacity stackers, you cannot install the multi-folding unit, the ring binder, or the perfect binder.
You can install the multi-folding unit, the ring binder, the high capacity stacker, or the perfect binder only if either Finisher SR5050 or Booklet Finisher SR5060 is installed.
You can install the trimmer only if Booklet Finisher SR5060 is installed.
You cannot install the ring binder and perfect binder simultaneously.
The multi bypass tray (Tray 7) can be attached only if either the LCT or the wide LCT is installed. However, you can attach the multi bypass tray (Tray 7) to the two-tray wide LCT only if the multi bypass attachment kit is installed.
