Exterior: Rear view

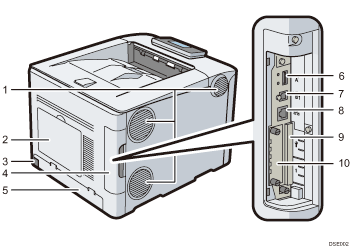

Rear side of the printer illustration numbered callout illustration

  1. Ventilation holes

    Prevent overheating.

  2. HDD cover

    Remove this cover to install the optional hard disk.

  3. Power connector

    Connect the power cord to the printer. Insert the other end into an electrical outlet.

  4. Cable cover

    Remove this cover to install the optional interface units and the SD card, and to connect various cables.

  5. Rear cover

    Raise this cover and attach the paper tray cover when loading paper larger than A4 or letter size paper.

  6. USB port A

    Connect external devices such as a digital camera, a card authentication device, etc.

  7. USB port B

    Use a USB cable to connect the printer to a computer.

  8. Ethernet port

    Use a network interface cable to connect the printer to a network.

  9. Expansion card slots

    Remove the cover to install SD cards.

  10. Optional interface board slot

    Optional interface boards can be inserted.

    Insert an optional wireless LAN interface board, IEEE 1284 interface board or USB device server.
