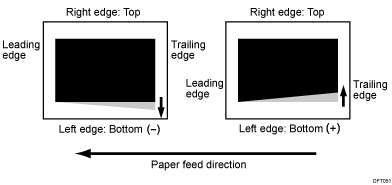

Adjust the position to start printing the image at the trailing edge of the bottom (left) part of the image to be printed on side 2.
Press [+] to move the position away from the paper's bottom part and [－] to move it closer.
Calculate the adjustment value with the following formula:
Adjustment at trailing edge (mm) ×500 (mm) ÷ Paper width (mm) in paper feed direction = Adjustment value (mm)
Setting Item |
Max. Value |
Min. Value |
Step |
Unit |
|---|---|---|---|---|
[Correct Trapezoidal Distortion: Side 2 Left Edge] |
0.25 |
-0.25 |
0.01 |
mm |
