Punch

You can make punch holes in copies.

You cannot specify Punch with Z-fold.

2 holes

Illustration of Punch

3 holes

Illustration of Punch

Original orientation and punch hole position

Place all the originals in the ADF in the orientation in which they can be read normally. When placing the original on the exposure glass, keep the same orientation, but set the original facing downwards.

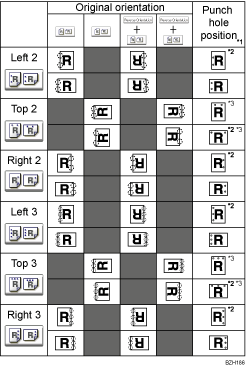

The relationship between the orientation in which you place the original and the punch hole positions is as follows:

Illustration of punch position

*1 The above table shows punch hole positioning. Punched sheets might not be delivered in the orientation shown in this table.

*2 You cannot make punch holes at this position when copying onto the following paper sizes: A3, B4 JIS, 11 × 17, 8¹/₂ × 14, 8 × 13, 8¹/₂ × 13, 8¹/₄ × 13

*3 If you want to make punch holes at this position, select unreadable orientation in Original Orientation and then select Top 2 or Top 3.

Press [Output/ Customize Function/ Finisher].
Press [Finisher].
Select one of the punch hole positions.
Press [OK].
Enter the number of copies with the number keys.
Place the originals, and then press the [Start] key.

For details about which sizes and weights of paper that can be punched, see "Specifications for Punch Unit (Finisher SR5000)" or "Specifications for Punch Unit (Booklet Finisher SR5020)", About This Machine.
When placing an original on the exposure glass, start with the first page to be copied. When placing originals in the ADF, set so that the first page is on the top.
You can change the punch hole positions shown on the initial display under Input / Output in User Tools. You can also register hole positions on the [Finisher] tab. To select a punch hole position not displayed on the initial display, you need to specify one of these settings. For details, see "Copier/Document Server Features", General Settings Guide.
