User GuidePro C7500/C7500H

147 Tray2

Important

  • The three rollers must be replaced together.

  • Handle new rollers carefully and avoid touching their surfaces with bare hands.

  • If you lose a snap ring, contact your service representative.

What You Need

  • Screwdriver

  • Pickup Roller

  • Feed Roller

  • Separate Roller

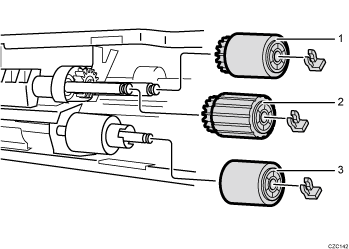

Machine body illustration

  1. Feed Roller

  2. Pickup Roller

  3. Separate Roller
