Connecting the Telephone Line

To connect the machine to a telephone line, use a snap-in modular type connector.

Important

  • Make sure the connector is the correct type before you start.

  • Connect the public switched telephone network (PSTN) to Line. Connecting lines other than PSTN to this machine may cause it to malfunction.

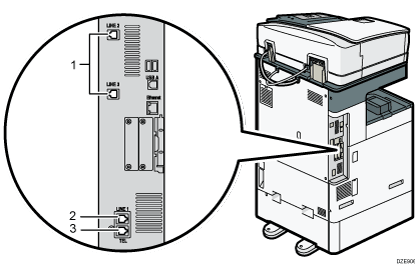

illustration of connecting the telephone line (numbered callout illustration)

  1. Extra G3 interface unit connector

  2. G3 interface unit connector

  3. External telephone connector

Note

  • If you connect a modular cable to the G3 interface unit connector, make two loops 3 cm (1.2 inches) (1) from the end of the modular cable (connection side to the machine) and attach the included ferrite core to the loops as shown.

    illustration of a modular cable with ferrite core
