Exterior: Rear view

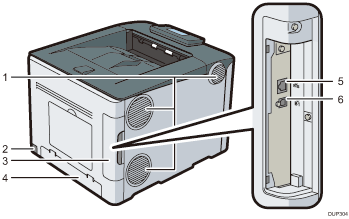

Rear side of the printer illustration numbered callout illustration

  1. Ventilation holes

    Prevent overheating.

  2. Power connector

    Connect the power cord to the printer. Insert the other end into an electrical outlet.

  3. Cable cover

    Remove this cover to connect various cables.

  4. Rear cover

    Raise this cover and attach the paper tray cover when loading paper larger than A4 or letter size paper.

  5. Ethernet port

    Use a network interface cable to connect the printer to a network.

  6. USB port B

    Use a USB cable to connect the printer to a computer.
