Names and Positions of Paper Trays

The optional units that your machine is equipped with determine the paper tray configuration.

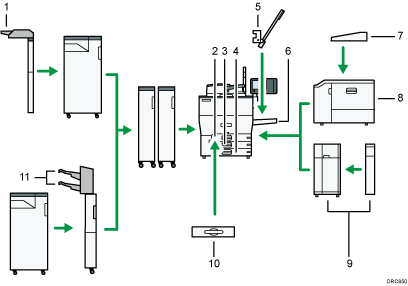

Illustration of the paper tray configuration numbered callout illustration

  1. Interposer Tray

  2. Tray 1

  3. Tray 2

  4. Tray 3

  5. Multi bypass banner sheet tray

  6. Bypass Tray

  7. Banner sheet guide tray

  8. Wide LCT

  9. LCT

  10. A3/11 × 17 tray unit

  11. Twin Interposer Tray
