Exterior: Rear view

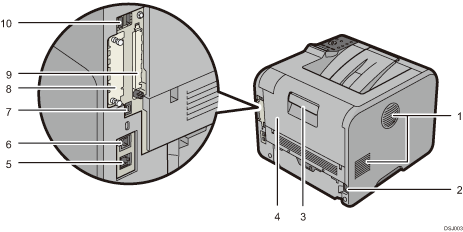

Main unit illustration numbered callout illustration

  1. Exhaust vent

    Releases hot air from the printer's interior to prevent internal components overheating.

    The direction of exhaust from this vent can be adjusted. Do not block or obstruct the printer's vents. Doing so can result in malfunctions caused by build up of heat inside the printer.

  2. Power connector

    Connect the power cord to the printer. Insert the other end into an electrical outlet.

  3. Rear cover open lever

    Pull this lever to open the rear cover.

  4. Rear cover

    Open to access the inside of the printer.

    Open here to replace the fusing unit or using the envelope lever.

  5. Ethernet port

    Use a network interface cable to connect the printer to a network.

  6. USB port B

    Use a USB cable to connect the printer to a computer.

  7. USB port H (Port for use by customer engineer)

    Do not use this port.

  8. Optional interface board slot

    Optional interface boards can be inserted.

    Insert an optional wireless LAN interface board or IEEE 1284 interface board.

  9. Expansion card slots

    Remove the cover to install SD cards.

  10. USB port A

    Connect external devices such as a card authentication device, etc.
