[Document Server] Screen

You can organize documents stored in the Document Server in folders.

You can view a list of the documents in a folder by touching the folder key.

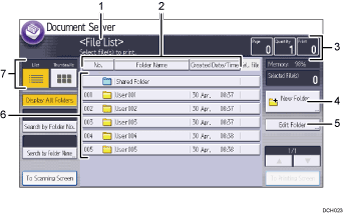

Folder list screen

Operation panel screen illustration numbered callout illustration

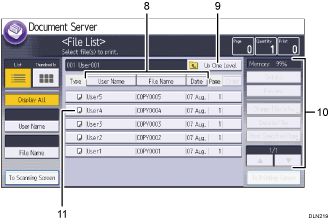

File list screen

Operation panel screen illustration numbered callout illustration

  1. Operational status and messages

    Displays operational status and messages.

  2. [No.], [Folder Name], and [Created Date/Time]

    Press the item to sort the folders. Select the same item once more for a reverse sort.

  3. Page, Quantity, and Print

    Displays the number of originals stored in memory, number of sets to be printed, and prints made.

  4. [New Folder]

    Press to create a new folder.

  5. [Edit Folder]

    Press to change the folder name or password, or to delete the folder.

  6. Folder keys

    Press to display the list of stored files in the folder. If a password has been specified for a folder, a lock icon Operation panel screen illustration appears to the left of the folder name.

  7. List and Thumbnails

    Displays keys for switching the display between list and thumbnails.

  8. [User Name], [File Name], and [Date]

    Press the item to sort the files. Select the same item once more for a reverse sort.

  9. [Up One Level]

    Press to display the list of folders.

  10. Operation keys

    Press to operate stored files.

    If the file you want to select is not displayed in the list, press [Up arrow key] or [Down arrow key] to scroll the screen.

  11. Icons

    Displays an icon that indicates the function used to store the document. If a password has been specified for a file, a lock icon Operation panel screen illustration appears to the left of the user name for the file.

The following icons appear in the list of the Document Server to indicate the function used to store a document:

Function

Icon

Copier

Operation panel screen illustration

Facsimile

Operation panel screen illustration

Printer

Operation panel screen illustration

[Thumbnail] screen

In thumbnail view, reduced versions of the stored documents are displayed. This is useful for checking a document's content on the file list screen.

Operation panel screen illustration

Note

  • Some stored documents may not be displayed, depending on the security settings.
