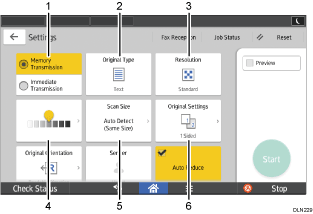

[Settings] screen

1

You can switch to Immediate Transmission mode. Unless immediate transmission is selected, Memory Transmission mode is selected by default.

2

You can select an original type that is suitable for your originals.

3

Press to select the resolution according to the size of the text on your original.

4

Press to specify the density to scan the original. You can also specify the density by touching the icon and dragging it right or left.

5

Press to select the scanning size of the original.

6

Press to select the sides of the original

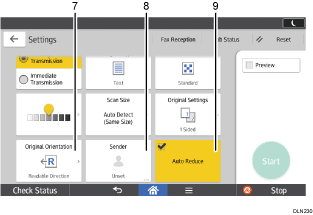

7

Press to select the orientation of the original.

8

Press to specify the sender.

9

Page separation and length reduction

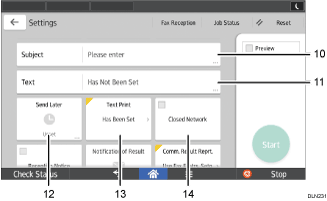

10

Specify the Internet Fax/E-Mail subject

11

Specify the Internet Fax/E-Mail Text

12

You can specify settings to automatically send files directly at a specified time.

13

You can select a standard message to be printed.

14

You can send files over a closed network.

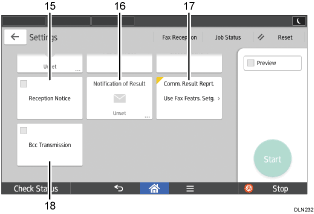

15

Requesting reception confirmation

16

You can receive a transmission notification by e-mail

17

Once memory transmission is complete, you can have the result printed.

18

Specifying Internet Fax/e-mail destinations as BCC addresses
