Guide to Components

CAUTION


  • Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal components.

Front and right view

Main unit illustration numbered callout illustration

  1. ADF

    Lower the ADF over originals placed on the exposure glass.

    If you load a stack of originals in the ADF, the ADF will automatically feed the originals one by one.

  2. Exposure glass

    Place originals face down here.

  3. Control panel

    See Guide to the Names and Functions of the Machine's Control Panel.

  4. Front cover

    Open to replace the toner cartridge.

  5. Paper tray

    Load paper here.

  6. Paper tray unit

    Load paper here.

  7. Bypass tray

    Use to copy or print on OHP transparencies and label paper (adhesive labels).

  8. Extender

    Pull this extender out when loading A4Portrait, 81/2 × 11Portrait or larger size paper in the bypass tray.

  9. Paper guides

    When loading paper in the bypass tray, align the paper guides flush against the paper.

  10. Lower right cover

    Open this cover when a paper jam occurs.

  11. Right cover

    Open this cover when a paper jam occurs.

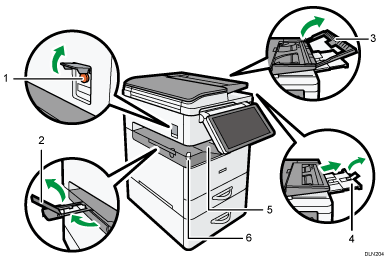

Front and left view

Main unit illustration numbered callout illustration

  1. Main power switch

    To operate the machine, the main power switch must be on. If it is off, turn the switch on.

  2. Internal tray guide

    Open out and raise the end fence to support large paper.

    Be sure not to place an excessive load. Doing so may damage the tray.

  3. ADF's extender

    When loading an original longer than A4Landscape or 81/2 × 11Landscape, raise the extender.

    Be sure not to place an excessive load. Doing so may damage the extender.

  4. Output tray extender

    When loading an original longer than A4Landscape or 81/2 × 11Landscape, raise the extender.

  5. Internal tray

    Copied/printed paper and fax messages are delivered here.

  6. LED for Checking Printed Copies

    This lights up when there are printed copies on the machine’s output tray. Remember to retrieve the printed copies from the tray.

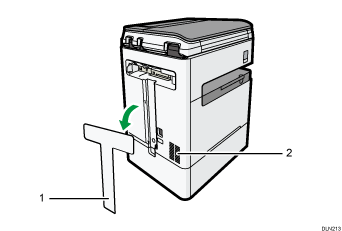

Rear and left view

Main unit illustration numbered callout illustration

  1. Back cover

    Remove this before connecting cables and reattach it after connecting the cables.

  2. Vents

    Prevents overheating.
