Reducing or Enlarging Originals

This section describes methods of reducing or enlarging images by specifying a reproduction ratio, or a paper size.

Base Point

The base point of reduce/enlarge differs depending on how the original is scanned. When the original is placed on the exposure glass, the upper left corner will be the base point. When it is placed in the ADF, the bottom left corner will be the base point.

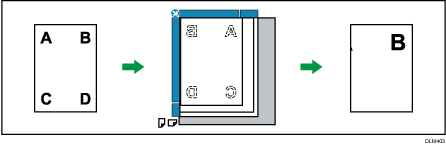

  • Placing the original on the exposure glass (Enlarging)

    Illustration of base point

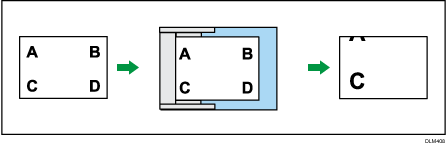

  • Placing the original in the ADF (Enlarging)

    Illustration of base point

Note

  • The reproduction ratio is between 25 and 400%.
