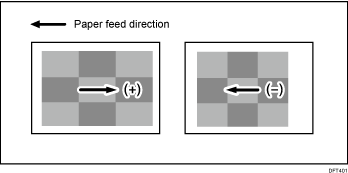

Adjust the horizontal image scaling on the Side 1 of the paper according to the paper expansion or shrinkage.
Press [+] to increase the scaling and [-] to reduce it in accordance with the leading edge of the image.
To make this adjustment without adjusting the scale according to the paper expansion or shrinkage, set 118: [Act Aut Crct Snsr for 2 Sdd Mgnf Adj] to [Deactivate].
Setting Item |
Max. Value |
Min. Value |
Step |
Unit |
---|---|---|---|---|
[Adjust Magnification of Side 1 With Feed Dir] |
0.500 |
-0.500 |
0.025 |
% |
