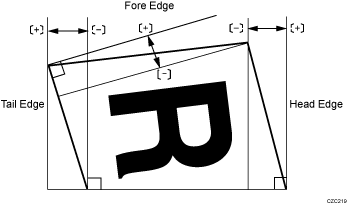

Square the top, bottom, and outside edges when trimming a deck of paper.
Apply this adjustment if the three edges of the deck of paper cut by the perfect binder are not square.
Enter the distance from the square part at each edge.
Setting Items |
Default Value |
Max. Value |
Min. Value |
Step |
Unit |
|---|---|---|---|---|---|
[Head Edge] |
0.0 |
10.0 |
-10.0 |
0.1 |
mm |
[Tail Edge] |
|||||
[Fore Edge] |
